Product model：CY300K/CY600K/CY900K
Lanes number：2-16lanes
Capacity：30--50 / Max.30-50cycle/min/lane
Bag size：L：50-180mm W：25-110mm
Film width&thickness：Max.300-900mm，0.07--0.1mm
Measuring Method：1、Vomuletric cup;2、weigher
Sealing type：3 side sealing
Cutting type：1、Straight cutting;2、Zig zag cutting 3、Round cutting;4、Die-cut
Power supply：1N+PE/50HZ/AC220V/380V/3.5-7.5kw
Air consumption：0.8 MPA 0.8m3/min
Weight：600kg
The three sided sealing multi row packaging machine for herbal tea granules can automatically complete bag making, measurement, cutting, sealing, and cutting. It is compatible with rounded corner bags, irregular bags, flat bags, and serrated bags. This machine is suitable for packaging herbal tea granules, enzyme granules, instant coffee, juice powder, white sugar, oats, and other materials.
We can help you find the goods you want by phone
Machine video introduction

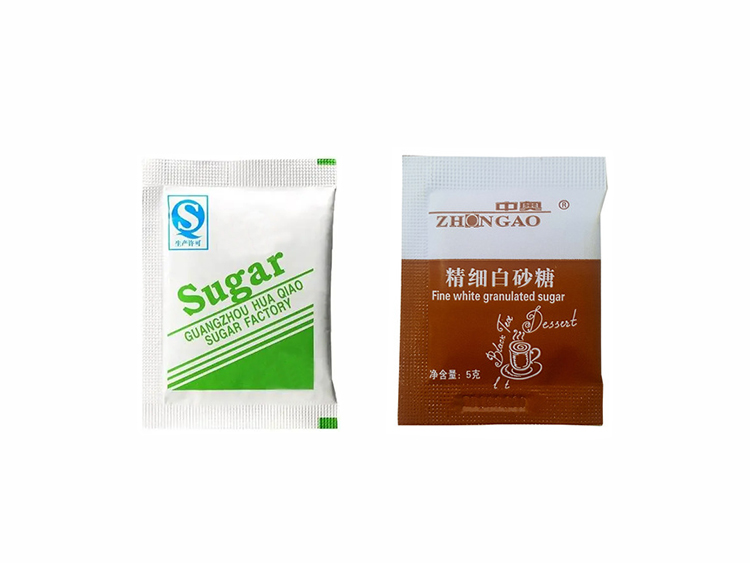

Packaging sample bag
Machine parameters
| Model | CY300K | CY600K | CY900K | |
| Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lanes | |
| Capacity | 30--50 / Max.30-50cycle/min/lane | |||
| Bag size | L：50-180mm W：25-75mm | L：50-180mm W：25-100mm | L：50-180mm W：25-110mm | |
| Film width&thickness | Max.300mm，0.07--0.1mm | Max.600mm，0.07--0.1mm | Max.900mm，0.07--0.1mm | |
| Measuring Method | 1、Vomuletric cup；2、weigher | |||
| Sealing type | 3 side sealing | 3 side sealing | 3 side sealing | |
| Cutting type | 1、Straight cutting；2、Zig zag cutting；3、Round cutting；4、Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Machine details
掛膜裝置
袋子成型
袋子成型 2
橫封和縱封裝
量杯計(jì)量系統(tǒng)
量杯式計(jì)量系
料桶
料桶1
